HTML5 Canvas气泡背景特效

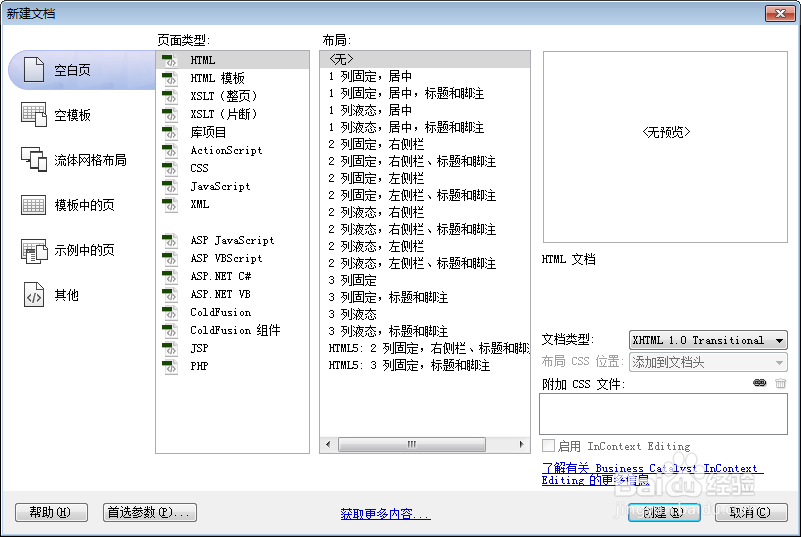

1、新建html文档。

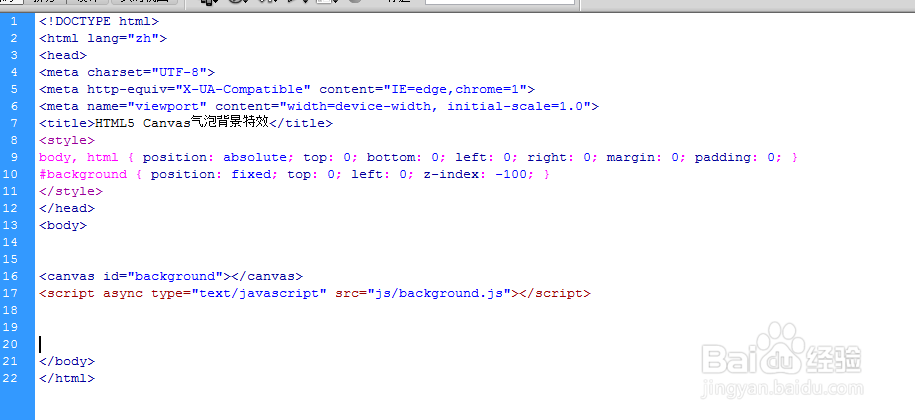

2、书写页面html，css引用js。
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>HTML5 Canvas气泡背景特效</title>
<style>
body, html { position: absolute; top: 0; bottom: 0; left: 0; right: 0; margin: 0; padding: 0; }
#background { position: fixed; top: 0; left: 0; z-index: -100; }
</style>
</head>
<body>
<canvas id="background"></canvas>
<script async type="text/javascript" src="js/background.js"></script>
</body>
</html>
3、书写js特效。
window.addEventListener("load", function() {
var ctx = document.getElementById('background').getContext('2d');
//gradient
var options =
{resolution: 1,
gradient:
{resolution: 4,
smallRadius: 0,
hue:
{min: 0,
max: 360
},
saturation:
{min: 40,
max: 80
},
lightness:
{min: 25,
max: 35
}
},
bokeh:
{count: 30,
size:
{min: 0.1,
max: 0.3
},
alpha:
{min: 0.05,
max: 0.4
},
jitter:
{x: 0.3,
y: 0.3
}
},
speed:
{
min: 0.0001,
max: 0.001
},
debug:
{
strokeBokeh: false,
showFps: false
}
};
var mobile =
{
force: false,
resolution: 0.5,
bokeh:
{
count: 6
}
};
//buffers
var gradientBuffer = document.createElement('canvas').getContext('2d');
var circleBuffer = document.createElement('canvas').getContext('2d');
//render time, fps calculations, debug
var time;
var targetFps = 60; //not actual fps, but updates per second
var curFps = 0;
var cntFps = 0;
var fps = 0;
var w = 0;
var h = 0;
var scale = 0;
//constants for faster calcs
var pi2 = Math.PI * 2;
//util functions
function lerp(a, b, step) {
return step * (b - a) + a;
}
function clamp(a) {
if (a < 0) return 0;
if (a > 1) return 1;
return a;
}
function rand(obj) {
return Math.random() * (obj.max - obj.min) + obj.min;
}
function newColor() {
return new Color(
rand(options.gradient.hue),
rand(options.gradient.saturation),
rand(options.gradient.lightness)
);
}
function isMobile() {
return (
mobile.force
|| navigator.userAgent.match(/Android/i)
|| navigator.userAgent.match(/webOS/i)
|| navigator.userAgent.match(/iPhone/i)
|| navigator.userAgent.match(/iPad/i)
|| navigator.userAgent.match(/iPod/i)
|| navigator.userAgent.match(/BlackBerry/i)
|| navigator.userAgent.match(/Windows Phone/i)
);
}
window.requestAnimFrame = (function(callback) {
if (isMobile())
return function(callback) {
window.setTimeout(callback, 1000 / 10);
};
return window.requestAnimationFrame || window.webkitRequestAnimationFrame
|| window.mozRequestAnimationFrame || window.oRequestAnimationFrame
|| window.msRequestAnimationFrame || function(callback) {
window.setTimeout(callback, 1000 / 60);
};
})();
//classes
function Color(h, s, l) {
this.h = h;
this.s = s;
this.l = l;
this.str = function() {
return this.h + ", " + this.s + "%, " + this.l +"%";
}
}
function ColorPoint(x, y, color) {
this.x = x;
this.y = y;
this.oldColor = color;
this.newColor = color;
this.step = 0;
this.speed = 0;
this.color = function() {
return new Color(lerp(this.oldColor.h, this.newColor.h, this.step),
lerp(this.oldColor.s, this.newColor.s, this.step),
lerp(this.oldColor.l, this.newColor.l, this.step));
}
}
var colorPoints = [
new ColorPoint(0, 0, new Color(196, 59, 34)),
new ColorPoint(0, 1, new Color(269, 79, 32)),
new ColorPoint(1, 0, new Color(30, 42, 33)),
new ColorPoint(1, 1, new Color(304, 47, 27))
];
function BokehCircle(x, y, size, alpha) {
this.oldX = x;
this.oldY = y;
this.oldSize = size;
this.oldAlpha = alpha;
this.newX = 0;
this.newY = 0;
this.newAlpha = 0;
this.newSize = 0;
this.step = 0;
this.speed = 0;
this.x = function() {
return lerp(this.oldX, this.newX, this.step);
}
this.y = function() {
return lerp(this.oldY, this.newY, this.step);
}
this.alpha = function() {
return lerp(this.oldAlpha, this.newAlpha, this.step);
}
this.size = function() {
return lerp(this.oldSize, this.newSize, this.step);
}
}
var circles = [];
function setJitter(circle) {
circle.newX = clamp(circle.oldX + rand({
min: -options.bokeh.jitter.x,
max: options.bokeh.jitter.x
}));
circle.newY = clamp(circle.oldY + rand({
min: -options.bokeh.jitter.y,
max: options.bokeh.jitter.y
}));
}
function resize() {
var width = window.innerWidth;
var height = window.innerHeight;
w = width * options.resolution;
h = height * options.resolution;
scale = Math.sqrt(w * h);
//actual canvas
ctx.canvas.width = width;
ctx.canvas.height = height;
ctx.scale(1 / options.resolution, 1 / options.resolution);
//circle canvas
var circleSize = options.bokeh.size.max * scale;
circleBuffer.canvas.width = circleSize * 2 + 1;
circleBuffer.canvas.height = circleSize * 2 + 1;
circleBuffer.fillStyle = "rgb(255, 255, 255)";
circleBuffer.beginPath();
circleBuffer.arc(circleSize, circleSize, circleSize, 0, pi2);
circleBuffer.closePath();
circleBuffer.fill();
//force render on mobile
if (isMobile())
render();
}
function softCopy(src, dest)
{
var i = 0;
for (var property in src)
{
if (dest.hasOwnProperty(property))
if (softCopy(src[property], dest[property]) == 0)
dest[property] = src[property];
i++;
}
return i;
}
function init() {
gradientBuffer.canvas.height = options.gradient.resolution;
gradientBuffer.canvas.width = options.gradient.resolution;
if (isMobile())
softCopy(mobile, options);
resize();
colorPoints.forEach(function(point) {
point.oldColor = newColor();
point.newColor = newColor()
point.speed = rand(options.speed);
});
for(i = 0; i < options.bokeh.count; i++) {
circles.push(new BokehCircle(Math.random(), Math.random(),
rand(options.bokeh.size), rand(options.bokeh.alpha)));
circles[i].newAlpha = rand(options.bokeh.alpha);
circles[i].newSize = rand(options.bokeh.size);
circles[i].speed = rand(options.speed);
setJitter(circles[i]);
}
}
function iterate() {
var now = Date.now();
curFps += (now - (time || now));
cntFps++;
var delta = (now - (time || now)) / (1000 / targetFps);
time = now;
if(curFps > 1000) {
fps = 1000 / (curFps / cntFps);
curFps -= 1000;
cntFps = 0;
}
colorPoints.forEach(function(point) {
point.step += point.speed * delta;
if (point.step >= 1) {
point.step = 0;
point.oldColor = point.newColor;
point.newColor = newColor();
point.speed = rand(options.speed);
}
});
circles.forEach(function(circle) {
circle.step += circle.speed * delta;
if(circle.step >= 1) {
circle.step = 0;
circle.oldX = circle.newX;
circle.oldY = circle.newY;
circle.oldAlpha = circle.newAlpha;
circle.oldSize = circle.newSize;
setJitter(circle);
circle.newAlpha = rand(options.bokeh.alpha);
circle.newSize = rand(options.bokeh.size);
circle.speed = rand(options.speed);
}
});
}
function render() {
iterate();
//draw point gradient to buffer
colorPoints.forEach(function(point) {
var x = point.x * options.gradient.resolution;
var y = point.y * options.gradient.resolution;
var grad = gradientBuffer.createRadialGradient(x, y,
options.gradient.smallRadius, x, y,
options.gradient.resolution);
grad.addColorStop(0, 'hsla(' + point.color().str() + ', 255)');
grad.addColorStop(1, 'hsla(' + point.color().str() + ', 0)');
gradientBuffer.fillStyle = grad;
gradientBuffer.fillRect(0, 0,
options.gradient.resolution, options.gradient.resolution);
});
//draw gradient from memory
ctx.globalCompositeOperation = "source-over";
ctx.drawImage(gradientBuffer.canvas, 0, 0, w, h);
//draw bokeh
ctx.globalCompositeOperation = "overlay";
if (options.debug.strokeBokeh)
ctx.strokeStyle = "yellow";
circles.forEach(function(circle) {
var size = circle.size() * scale;
ctx.globalAlpha = circle.alpha();
ctx.drawImage(circleBuffer.canvas,
circle.x() * w - size / 2, circle.y() * h - size / 2,
size, size);
if(options.debug.strokeBokeh) {
ctx.globalAlpha = 1;
ctx.globalCompositeOperation = "source-over";
ctx.strokeRect(circle.x() * w - size / 2,
circle.y() * h - size / 2, size, size);
ctx.globalCompositeOperation = "overlay";
}
});
ctx.globalAlpha = 1;
//debug info
if (options.debug.showFps) {
if(fps <= 10) ctx.fillStyle = 'red';
else ctx.fillStyle = 'yellow';
ctx.font = "20px sans-serif";
ctx.fillText(Math.round(fps) + " fps", 10, 20);
}
//done rendering, wait for frame
window.requestAnimFrame(render);
}
//does not seem to impact performance
window.addEventListener("resize", resize);
//init and render :)
init();
render();
});

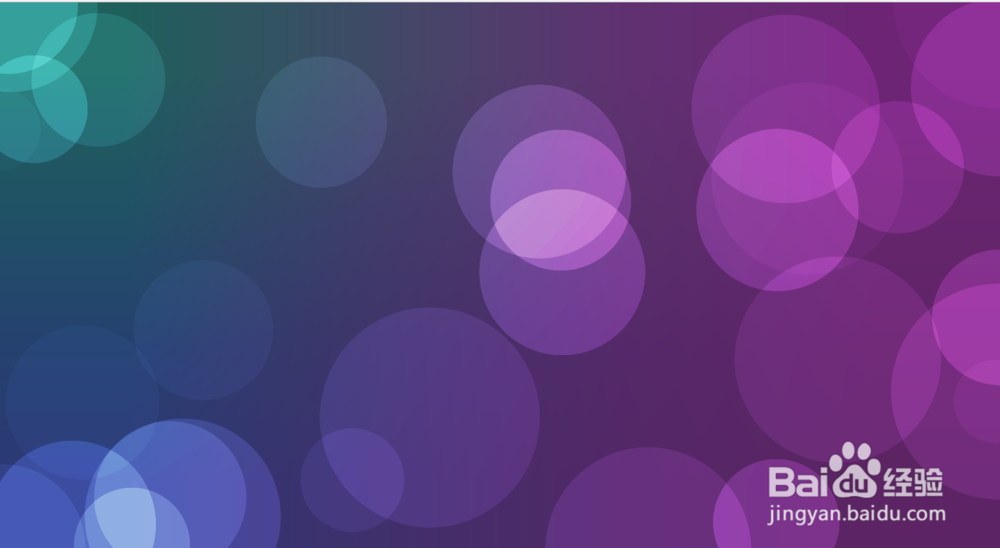

4、查看效果。
