【微分几何】球面上的测地线

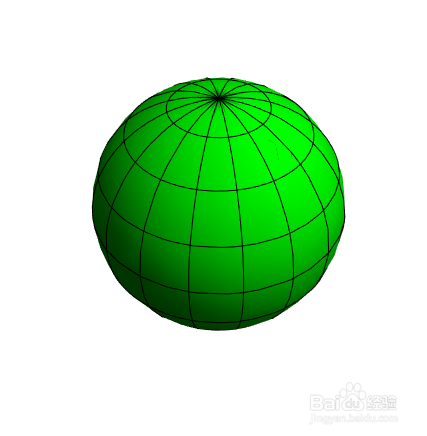

1、r[u_, v_] := {Cos[u] Cos[v], Cos[u] Sin[v], Sin[u]};a = Show[ParametricPlot3D[r[u,v],{u,0,2 Pi}, {v, 0, 2Pi},PlotStyle->Green],Axes->False,Boxed->False,PlotRange->All]

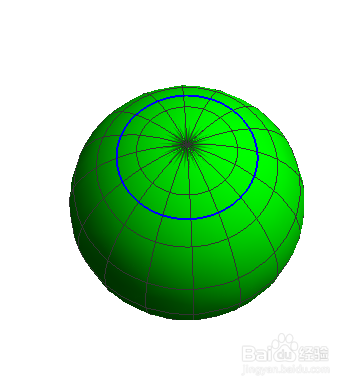

2、球面上的小圆一般不是测地线。

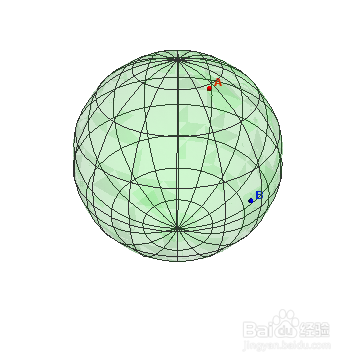

3、球面上A和B两个点：

a = Show[Graphics3D[{Red,Ball[r[2,3],0.02],Inset[Style["A",Red,Bold,10],r[2,3]+0.05],Blue,Ball[r[3,3],0.02],Inset[Style["B",Blue,Bold,10],r[3,3]+0.05]}],ParametricPlot3D[r[u,v],{u,0,2 Pi}, {v, 0, 2Pi},PlotStyle->{Green,Opacity[0.1]},ViewPoint->2r[2.5,2.36]],Axes->False,Boxed->False,PlotRange->All]

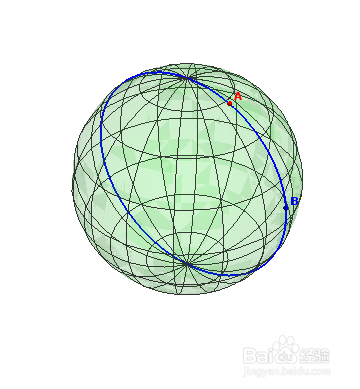

4、进过A、B的测地线是：

a = Show[Graphics3D[{Red,Ball[r[2,3],0.02],Inset[Style["A",Red,Bold,10],r[2,3]+0.05],Blue,Ball[r[3,3],0.02],Inset[Style["B",Blue,Bold,10],r[3,3]+0.05]}],ParametricPlot3D[r[u,3],{u,0,2 Pi},PlotStyle->{Blue}],ParametricPlot3D[r[u,v],{u,0,2 Pi}, {v, 0, 2Pi},PlotStyle->{Green,Opacity[0.1]},ViewPoint->2r[2.5,2.36]],Axes->False,Boxed->False,PlotRange->All]

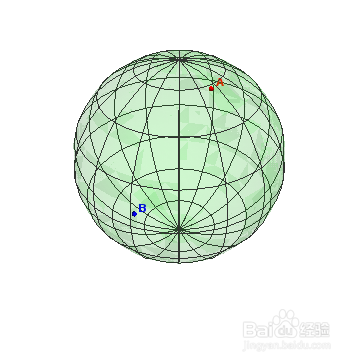

5、如果A和B不在同一条经线上：

a = Show[Graphics3D[{Red,Ball[r[2,3],0.02],Inset[Style["A",Red,Bold,10],r[2,3]+0.05],Blue,Ball[r[3,2],0.02],Inset[Style["B",Blue,Bold,10],r[3,2]+0.05]}],(*ParametricPlot3D[r[u,3],{u,0,2 Pi},PlotStyle->{Blue}],*)ParametricPlot3D[r[u,v],{u,0,2 Pi}, {v, 0, 2Pi},PlotStyle->{Green,Opacity[0.1]},ViewPoint->2r[2.5,2.36]],Axes->False,Boxed->False,PlotRange->All]

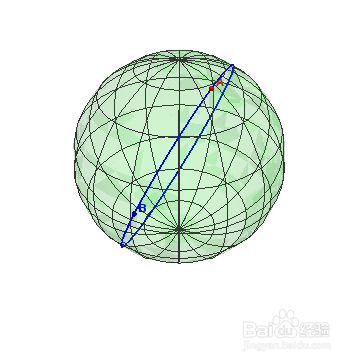

6、经过计算，可以得到这条测地线的参数方程：

h=RotationTransform[{{0,0,1}*1.,Cross[r[2,3],r[3,2]]*1.}][{Cos[u],Sin[u],0}]

a = Show[Graphics3D[{Red,Ball[r[2,3],0.02],Inset[Style["A",Red,Bold,10],r[2,3]+0.05],Blue,Ball[r[3,2],0.02],Inset[Style["B",Blue,Bold,10],r[3,2]+0.05]}],ParametricPlot3D[h,{u,0,2 Pi},PlotStyle->{Blue}],ParametricPlot3D[r[u,v],{u,0,2 Pi}, {v, 0, 2Pi},PlotStyle->{Green,Opacity[0.1]},ViewPoint->2r[2.5,2.36]],Axes->False,Boxed->False,PlotRange->All]
