HTML5波浪滚动动画加载

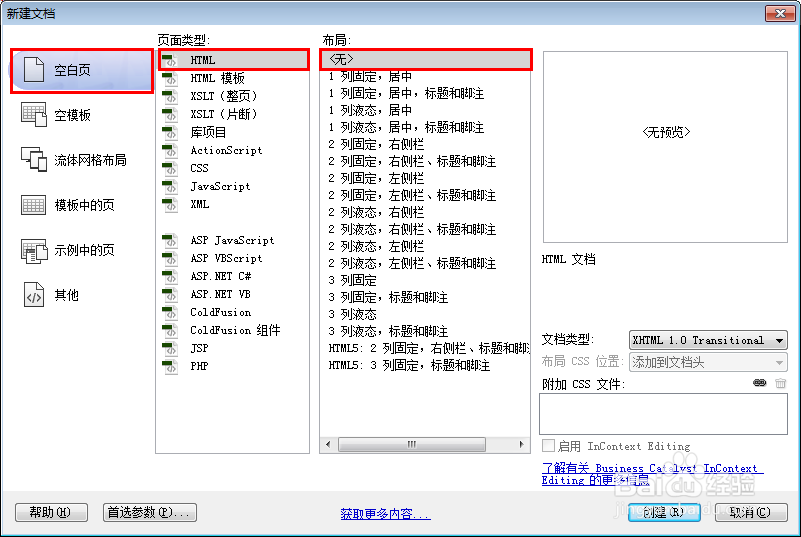

1、新建html文档。

2、书写hmtl代码。<div id="wave" class="wave"><span>60%</span></div>

3、书写css代码。

<style>

*{margin:0;padding:0;list-style:none;}

body{background-color:#ff5146;}

.wave{width:200px;height:200px;overflow:hidden;border-radius:50%;background:rgba(255,203,103,.6);margin:100px auto;position:relative;text-align:center;display:table-cell;vertical-align:middle;}

.wave span{display:inline-block;color:#fff;font-size:20px;position:relative;z-index:2;}

.wave canvas{position:absolute;left:0;top:0;z-index:1;}

</style>

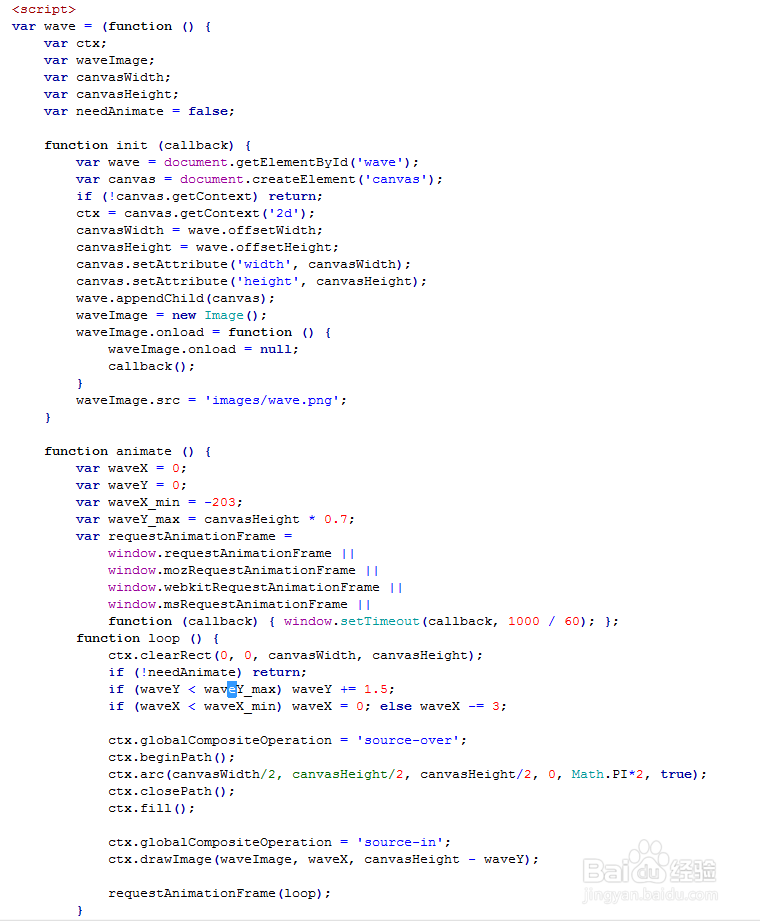

4、书写并添加js代码。

<script>

var wave = (function () {

   var ctx;

   var waveImage;

   var canvasWidth;

   var canvasHeight;

   var needAnimate = false;

   function init (callback) {

       var wave = document.getElementById('wave');

       var canvas = document.createElement('canvas');

       if (!canvas.getContext) return;

       ctx = canvas.getContext('2d');

       canvasWidth = wave.offsetWidth;

       canvasHeight = wave.offsetHeight;

       canvas.setAttribute('width', canvasWidth);

       canvas.setAttribute('height', canvasHeight);

       wave.appendChild(canvas);

       waveImage = new Image();

       waveImage.onload = function () {

           waveImage.onload = null;

           callback();

       }

       waveImage.src = 'images/wave.png';

   }

   function animate () {

       var waveX = 0;

       var waveY = 0;

       var waveX_min = -203;

       var waveY_max = canvasHeight * 0.7;

       var requestAnimationFrame =

           window.requestAnimationFrame ||

           window.mozRequestAnimationFrame ||

           window.webkitRequestAnimationFrame ||

           window.msRequestAnimationFrame ||

           function (callback) { window.setTimeout(callback, 1000 / 60); };

       function loop () {

           ctx.clearRect(0, 0, canvasWidth, canvasHeight);

           if (!needAnimate) return;

           if (waveY < waveY_max) waveY += 1.5;

           if (waveX < waveX_min) waveX = 0; else waveX -= 3;

           ctx.globalCompositeOperation = 'source-over';

           ctx.beginPath();

           ctx.arc(canvasWidth/2, canvasHeight/2, canvasHeight/2, 0, Math.PI*2, true);

           ctx.closePath();

           ctx.fill();

           ctx.globalCompositeOperation = 'source-in';

           ctx.drawImage(waveImage, waveX, canvasHeight - waveY);

           requestAnimationFrame(loop);

       }

       loop();

   }

   function start () {

       if (!ctx) return init(start);

       needAnimate = true;

       setTimeout(function () {

           if (needAnimate) animate();

       }, 500);

   }

   function stop () {

       needAnimate = false;

   }

   return {start: start, stop: stop};

}());

wave.start();

</script>

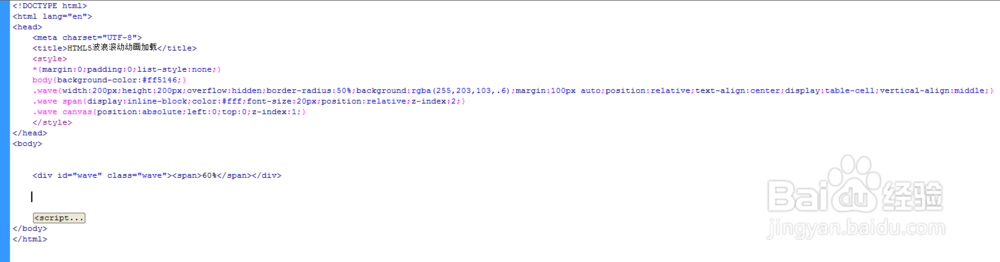

5、代码整体结构。

6、查看效果。
